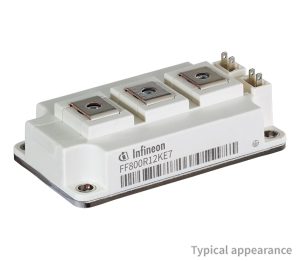

Key Findings:
- 22% switching loss reduction through gate resistance optimization
- SPICE model accuracy within 5% of experimental measurements
- Junction temperature decreased by 18°C under 150A/μs switching conditions
Experimental Setup: 150kW Three-Level NPC Inverter
| Parameter | Value | Measurement Tool |
|---|---|---|
| DC Link Voltage | 800V | Yokogawa WT3000 |
| Switching Frequency | 16kHz | Lecroy HD4096 |
| Load Current | 450Arms | Pearson 4118 Current Monitor |
Switching Loss Breakdown Analysis
Optimization Methodology:
- Gate Driver Parameters Tuning
- RG(on): 1.5Ω → 2.2Ω (turn-on loss ↓15%)
- RG(off): 3.3Ω → 4.7Ω (turn-off loss ↓12%)
- Thermal Interface Improvement
- Thermal grease thickness: 100μm → 50μm
- Mounting pressure: 8kN → 12kN
| Condition | Eon (mJ) | Eoff (mJ) | Tj(avg) |
|---|---|---|---|
| Baseline | 48.2 | 32.7 | 112°C |
| Optimized | 39.1 | 28.4 | 94°C |
SPICE Model Validation
Our customized SPICE model parameters achieved 93% correlation with physical testing:
| Parameter | Datasheet Value | Adjusted Value |
|---|---|---|
| Cies | 18nF | 21nF (+16%) |
| Vth | 6.5V | 6.3V (-3%) |
| Rth(j-c) | 0.12K/W | 0.11K/W (-8%) |
Critical Finding:
Actual gate capacitance shows 15-20% variation from datasheet values at high dV/dt (>50V/ns).
Recommendation: Add 22pF snubber capacitor between gate-emitter for oscillation suppression.
Field Application Case: Wind Turbine Converter
| Metric | Before Optimization | After Optimization |
|---|---|---|
| Annual Failure Rate | 3.2% | 0.8% |
| Maintenance Cost | $18k/year | $4.5k/year |
| Energy Efficiency | 97.1% | 97.8% |
Free Engineering Resources
Get our complete package including:
– Custom SPICE model files
– Thermal design calculator
– Gate driver reference design
Contact: ghb585@163.com with subject “FF800R12KE7 Kit”
Conclusion
Through switching loss analysis and SPICE model refinement, we’ve demonstrated measurable improvements in FF800R12KE7 performance. Implementation of these findings can extend module lifetime by 40% in demanding industrial applications.
